Total Monitoring Pack Tikee mini+ (+ Solar panel)
2.336,40€
Total Monitoring Pack Tikee mini+ (+ Solar panel)
Your site, your story. Protected.
1.947€
VAT excluded
2.336,40€
Document
Tell the full story of your project.
Monitor
Track every step of your project remotely.
Secure
Protect your site with visual proof and instant notification.
4K resolution
Equipped with a high-sensitivity Sony sensor, the Tikee mini+ offers superior image quality with 4K resolution.
4G/LTE, WiFi, GPS
Manage your sequences remotely, send your photos to the cloud, and access your images wherever you are.
Smart motion detector
with instant notification
Integration with myTikee cloud platform
for secure storage and sharing of notifications and media

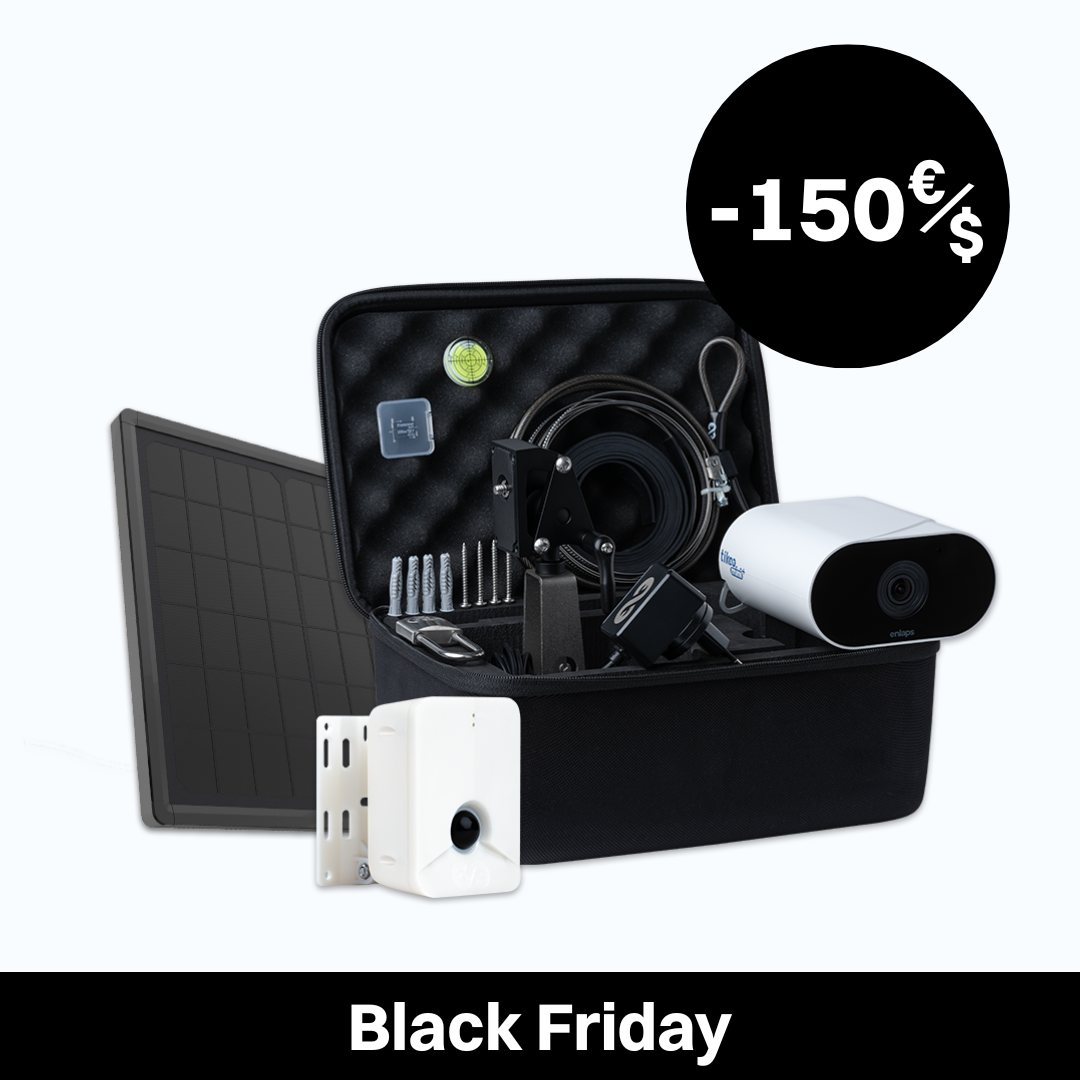

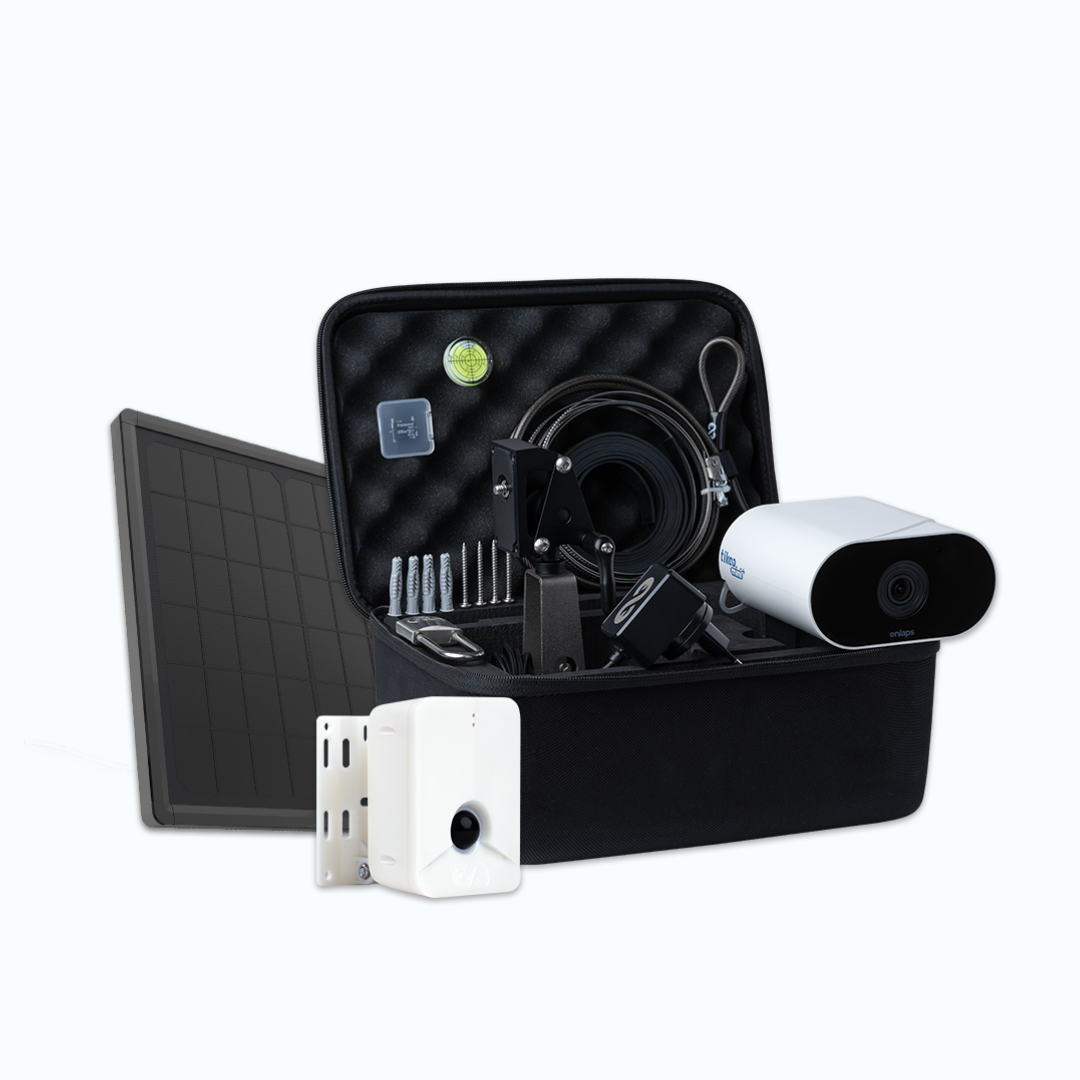

The pack contains:
799€
VAT excluded
958,80€
189€
VAT excluded
226,80€
459€
VAT excluded
550,80€
150€
VAT excluded
180,00€
35€
VAT excluded
42,00€
90€
VAT excluded
108,00€
69€
VAT excluded
82,80€
49€
VAT excluded
58,80€
x
The key features
4K resolution
Equipped with a high-sensitivity Sony sensor, the Tikee mini+ offers superior image quality with 4K resolution.
Compact size
The compact and lightweight Tikee mini+ stands out for its ease of installation, making it perfect for projects requiring quick and easy setup.
Indoor / Outdoor
Thanks to its shorter focusing distance than the Tikee 4 (5m vs 1m), the Tikee mini+ captures details at close range, ideal for indoor shots and also effective outdoors.
120° wide-angle sensor
Wide field of view (DFOV 149° / HFOV 124°)
Live Video Stream
Start a live video streaming session in HD resolution (1280 x 960) and instantly clarify any situation at the project site.
Features
True View
120°, 110°, or 90° perspectives for distortion-free shooting.
Rotation Settings
Position your camera freely in landscape or portrait mode for perfect framing, without any constraints.
Low Light Mode
Enjoy optimized performance in low light conditions.
Live preview
Get the perfect shot in seconds
New Adaptive Interval
Optimized autonomy.
Connectivity
4G/LTE
Remote connection anywhere in the world thanks to the cellular network
Wifi
Image transmission optimized via Wi-Fi network
GPS
Continuous camera tracking with built-in GPS beacon
Resistance & Autonomy
Weatherproof IP66
IP66 certified, the Tikee is designed to withstand extreme weather conditions, ensuring reliable performance from -10°C to +50°C.
Long-lasting battery
The Tikee mini+ battery ensures continuous monitoring of your projects even without a power source: its battery life can last up to 4 months with a 10-minute interval.*
(*) Battery life depends on the frequency of image capture and transmission, and the quality of the 4G/Wi-Fi network.
Flexible power supply
Waterproof connector for connecting an external solar panel or charger and recharging the internal battery.
1TB storage capacity
Up to 1TB on microSD card. That's 128,000 images in JPEG format or 30,000 images in DNG format.
| Dimensions | 125x125x70 mm |
|---|---|
| Weight | 3kg |
| Image Sensor | 1 wide-angle sensor Sony 12 Mpx Lens: F2.8 wide-angle lens DFOV: 149° - HFOV 124° Maximum sensor resolution: 12 MP Full resolution image size: 4032 x 3024 Sensor size: 1 / 2.3 Pixel size: 1.55μm |
| True View Mode | Viewing angle selectable from: Fisheye: HFOV 120° / VFOV 95° Dewarp 110°: HFOV 110° / VFOV 90°, with distortion correction Dewarp 90°: HFOV 90° / VFOV 70°, with distortion correction |
| Low Light Mode | Mode optimized for dark conditions. Images are brighter and less noisy Maximum exposure time: 2 seconds |
| Live Preview | Video feedback on the Tikee Remote app for framing assistance |
| Rotation Settings | Choose the camera orientation to capture the best angle Portrait mode (-90° / +90*) Landscape mode (0° /180°) - Upside down installation possible |
| White Balance | Automatic Mode or User Selectable (Shade 8500K, Overcast Outdoors 6500K, Sunny Outdoors 5500K, Fluorescent 4000K, Incandescent 2700K), Phenology Mode (5500K) |
| Photo format | Jpeg / DNG / Jpeg+DNG |
| Livestream video | 60-second sessions on demand - Maximum 60 sessions per month HD resolution (1280 x 960) Requires a myTikee Unlimited subscription |
| Timelapse video resolution | Up to 4K (with myTikee subscription) |
| 4G LTE Telecom Network Compatibility | Worldwide 4G/LTE Coverage (LTE-TDD Bands: B34/B38/B39/ B40/B41 LTE-FDD Bands: B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66 UMTS/HSPA+ Bands: B1/B2/B4/B5/B6/B8/B19) |
| Storage (not included) | Micro SD card up to 1TB |
| Battery Capacity | Built-in Li-ion battery – 25600 mAh |
| Waterproof connector | Waterproof connector for connecting a dedicated external solar panel or a Tikee charger |
| Charging | USB-C: 5V / 3A max Waterproof external connector 5V/2A |
| Details resistance to outdoor conditions | Protection class IP66: designed for prolonged outdoor use (resistant to sand, snow, rain, etc.) Operating temperature: -10 / +50°C Storage temperature: -25 / +60°C |
| Wireless data sending | Periodic Wi-Fi connection Permanent connectivity possible in "Always On" mode in 4G LTE. Requires a microSIM card and a telecom subscription capable of sending and receiving SMS (not supplied) Resolution of left and right images sent on the web application: selectable from 3 dimensions (in pixels): Small (S) - 2048 x 1536 per image, approx. 0.5 MB Medium (M) - 2664 x 1998 pixels per image, approx. 1.25 MB Large (L) - 4032 x 3024 pixels per image, approx. 2.5 MB |
| Wireless data setting details | Bluetooth Low Energy Mobile application compatible with iOS and Android Smartphone compatibility: Bluetooth 4.1 and above – Android 5 and above – iOS 11 and above |
| Mounting System | Standard ¼” camera screw thread |
| Download modes | Normal mode: sends every 25 (default value, configurable) photos of the camera status and photos Minimal mode: sends once a day the status and a photo Sample mode: sampling of the photos sent, only 1 photo out of N (value chosen by the user) will be sent to myTikee The mode, the parameters chosen, as well as the quality of the network can considerably increase energy consumption |
| Securing the Tikee | Metal insert for the passage of a padlock |
| Shooting interval | Long-term sequence: 30 seconds minimum Event or burst sequences: 5 seconds minimum User-defined or brightness-based schedules |
| Geolocation | Yes - Onboard GPS with assisted mode Only available with a 4G LTE connection |
| Firmware update | Near the Tikee: update from the SD card, from the Wi-Fi or 4G LTE network |
| Adaptive Interval | Yes - Mode that automatically adapts the shooting interval to optimize power consumption |
Dimensions
125x125x70 mm
Weight
3kg
Image Sensor
1 wide-angle sensor
Sony 12 Mpx
Lens: F2.8 wide-angle lens
DFOV: 149° - HFOV 124°
Maximum sensor resolution: 12 MP
Full resolution image size: 4032 x 3024
Sensor size: 1 / 2.3
Pixel size: 1.55μm
Sony 12 Mpx
Lens: F2.8 wide-angle lens
DFOV: 149° - HFOV 124°
Maximum sensor resolution: 12 MP
Full resolution image size: 4032 x 3024
Sensor size: 1 / 2.3
Pixel size: 1.55μm
True View Mode
Viewing angle selectable from:
Fisheye: HFOV 120° / VFOV 95°
Dewarp 110°: HFOV 110° / VFOV 90°, with distortion correction
Dewarp 90°: HFOV 90° / VFOV 70°, with distortion correction
Fisheye: HFOV 120° / VFOV 95°
Dewarp 110°: HFOV 110° / VFOV 90°, with distortion correction
Dewarp 90°: HFOV 90° / VFOV 70°, with distortion correction
Low Light Mode
Mode optimized for dark conditions. Images are brighter and less noisy
Maximum exposure time: 2 seconds
Maximum exposure time: 2 seconds
Live Preview
Video feedback on the Tikee Remote app for framing assistance
Rotation Settings
Choose the camera orientation to capture the best angle
Portrait mode (-90° / +90*)
Landscape mode (0° /180°) - Upside down installation possible
Portrait mode (-90° / +90*)
Landscape mode (0° /180°) - Upside down installation possible
White Balance
Automatic Mode
or
User Selectable (Shade 8500K, Overcast Outdoors 6500K, Sunny Outdoors 5500K, Fluorescent 4000K, Incandescent 2700K), Phenology Mode (5500K)
or
User Selectable (Shade 8500K, Overcast Outdoors 6500K, Sunny Outdoors 5500K, Fluorescent 4000K, Incandescent 2700K), Phenology Mode (5500K)
Photo format
Jpeg / DNG / Jpeg+DNG
Livestream video
60-second sessions on demand - Maximum 60 sessions per month
HD resolution (1280 x 960)
Requires a myTikee Unlimited subscription
HD resolution (1280 x 960)
Requires a myTikee Unlimited subscription
Timelapse video resolution
Up to 4K (with myTikee subscription)
4G LTE Telecom Network Compatibility
Worldwide 4G/LTE Coverage (LTE-TDD Bands: B34/B38/B39/ B40/B41 LTE-FDD Bands: B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66 UMTS/HSPA+ Bands: B1/B2/B4/B5/B6/B8/B19)
Storage (not included)
Micro SD card up to 1TB
Battery Capacity
Built-in Li-ion battery – 25600 mAh
Waterproof connector
Waterproof connector for connecting a dedicated external solar panel or a Tikee charger
Charging
USB-C: 5V / 3A max
Waterproof external connector 5V/2A
Waterproof external connector 5V/2A
Details resistance to outdoor conditions
Protection class IP66: designed for prolonged outdoor use (resistant to sand, snow, rain, etc.)
Operating temperature: -10 / +50°C
Storage temperature: -25 / +60°C
Operating temperature: -10 / +50°C
Storage temperature: -25 / +60°C
Wireless data sending
Periodic Wi-Fi connection
Permanent connectivity possible in "Always On" mode in 4G LTE. Requires a microSIM card and a telecom subscription capable of sending and receiving SMS (not supplied)
Resolution of left and right images sent on the web application: selectable from 3 dimensions (in pixels):
Small (S) - 2048 x 1536 per image, approx. 0.5 MB
Medium (M) - 2664 x 1998 pixels per image, approx. 1.25 MB
Large (L) - 4032 x 3024 pixels per image, approx. 2.5 MB
Permanent connectivity possible in "Always On" mode in 4G LTE. Requires a microSIM card and a telecom subscription capable of sending and receiving SMS (not supplied)
Resolution of left and right images sent on the web application: selectable from 3 dimensions (in pixels):
Small (S) - 2048 x 1536 per image, approx. 0.5 MB
Medium (M) - 2664 x 1998 pixels per image, approx. 1.25 MB
Large (L) - 4032 x 3024 pixels per image, approx. 2.5 MB
Wireless data setting details
Bluetooth Low Energy
Mobile application compatible with iOS and Android
Smartphone compatibility: Bluetooth 4.1 and above – Android 5 and above – iOS 11 and above
Mobile application compatible with iOS and Android
Smartphone compatibility: Bluetooth 4.1 and above – Android 5 and above – iOS 11 and above
Mounting System
Standard ¼” camera screw thread
Download modes
Normal mode: sends every 25 (default value, configurable) photos of the camera status and photos
Minimal mode: sends once a day the status and a photo
Sample mode: sampling of the photos sent, only 1 photo out of N (value chosen by the user) will be sent to myTikee
The mode, the parameters chosen, as well as the quality of the network can considerably increase energy consumption
Minimal mode: sends once a day the status and a photo
Sample mode: sampling of the photos sent, only 1 photo out of N (value chosen by the user) will be sent to myTikee
The mode, the parameters chosen, as well as the quality of the network can considerably increase energy consumption
Securing the Tikee
Metal insert for the passage of a padlock
Shooting interval
Long-term sequence: 30 seconds minimum
Event or burst sequences: 5 seconds minimum
User-defined or brightness-based schedules
Event or burst sequences: 5 seconds minimum
User-defined or brightness-based schedules
Geolocation
Yes - Onboard GPS with assisted mode
Only available with a 4G LTE connection
Only available with a 4G LTE connection
Firmware update
Near the Tikee: update from the SD card, from the Wi-Fi or 4G LTE network
Adaptive Interval
Yes - Mode that automatically adapts the shooting interval to optimize power consumption
